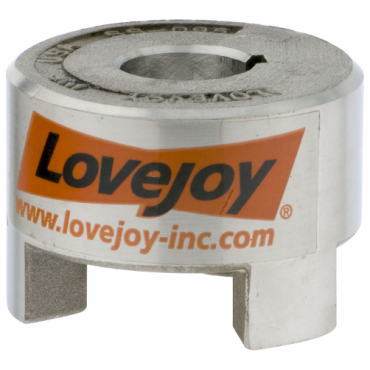

Lovejoy SS100X1 3/8HUB5/16 Stainless Steel Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy SS100X1 3/8HUB5/16 is a stainless steel finished bore jaw coupling hub designed for durability and efficiency. This coupling hub features a bore diameter of one and three-eighth inches and is compatible with various inserts, making it versatile for different applications.

• Finished bore hubs are passivated against rust.
• Interchangeable with all hub sizes standard for the L-line and AL-line products.
• Supports inserts in Buna-N, urethane, Hytrel, and bronze materials.

Product Highlights

This coupling hub is ideal for applications requiring a strong connection in mechanical systems. It is designed for easy integration with existing setups, offering both flexibility and reliability.

Product Information

Standard Information

• Brand: Lovejoy
• Product Name: Stainless Steel Finished Bore Jaw Coupling Hub

Technical Specifications

• Material: Stainless Steel
• RPM [Max]: 7000 rpm
• Hub Diameter: 2.54 inches
• Length Through Bore: 1.75 inches
• Bore Diameter: 1.375 inches - 1 3/8 inches
• Lock Type: Setscrew
• Depth: 2.46 inches
• Keyway Size: 5/16 x 5/32
• Set Screw Size: 3/8-16
• Bore Diameter [Min]: 5/8 inches
• Bore Type: Finished Bore
• Outside Diameter: 2.54 inches
• Coupling Type: Jaw
• Insert Style: Jaw Type
• Coupling Size: SS100
• Bore Diameter [Max]: 1 7/8 inches
• Weight: 1.48 lb
• EAN or UPC: 685144700223
