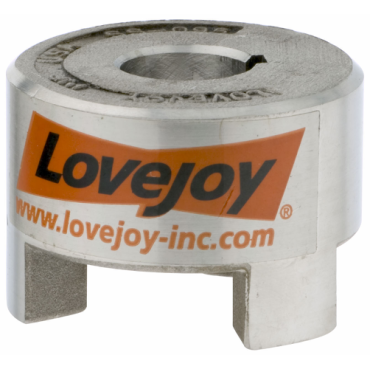

Lovejoy SS095X1/2HUB1/8 | Stainless Steel Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy SS095X1/2HUB1/8 is a stainless steel finished bore jaw coupling hub designed for efficient torque transfer. This coupling features rust-resilient finished bore hubs that include several design standards.

• Size: SS095 with a half inch bore diameter
• Material: Made of stainless steel
• Compatible with various insert materials

Product Highlights

This coupling is suitable for various applications and is designed to withstand maximum speeds of nine thousand revolutions per minute.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: SS095X1/2HUB1/8

Technical Specifications

• Length Through Bore: 0.82 in
• Material: Stainless Steel
• Approximate Bore: 1.34 in
• Outside Diameter: 1.36 in
• Depth: 1.34 in
• Bore Diameter: 0.500 in - 1/2 in
• Hub Diameter: 2.11 in
• Set Screw Size: 5/16-18
• Insert Style: Jaw Type
• Lock Type: Setscrew
• Bore Type: Finished Bore
• RPM [Max]: 9000 rpm
• Keyway Size: 1/8 x 1/16
• Bore Diameter [Min]: 1/4 in
• Bore Diameter [Max]: 1 in
• EAN or UPC: 685144700117
• Weight: 0.97 LB
