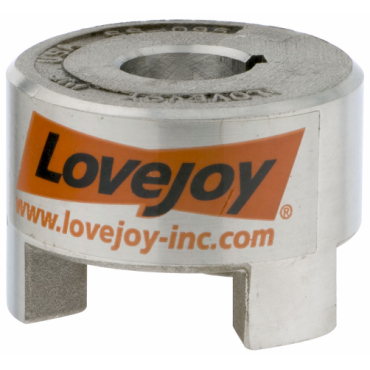

Lovejoy SS075X3/4HUB3/16 | Stainless Steel Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy SS075X3/4HUB3/16 is a stainless steel finished bore jaw coupling hub. This component is designed to connect two shafts while allowing for some misalignment. It features a robust and durable design suited for various applications in mechanical systems.

• Finished bore construction resists rust.
• Compatible with L-line and AL-line hub sizes.
• Can accommodate inserts in multiple materials including Buna-N, urethane, Hytrel, and bronze.

Product Highlights

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: SS075X3/4HUB3/16

Technical Specifications

• Depth: 1.32 in
• Hub Diameter: 1 3/4 in
• Set Screw Size: 1/4-20
• Outside Diameter: 1.36 in
• Length Through Bore: 0.82 in
• Lock Type: Setscrew
• Coupling Size: SS075
• Insert Style: Jaw Type
• Keyway Size: 3/16 x 3/32
• Bore Diameter: 0.750 in - 3/4 in
• Maximum Bore Diameter: 7/8 in
• Minimum Bore Diameter: 1/4 in
• Weight: 0.48 LB
• Maximum RPM: 11000 rpm
• Bore Type: Finished Bore
• Material: Stainless Steel
• EAN or UPC: 685144700094
