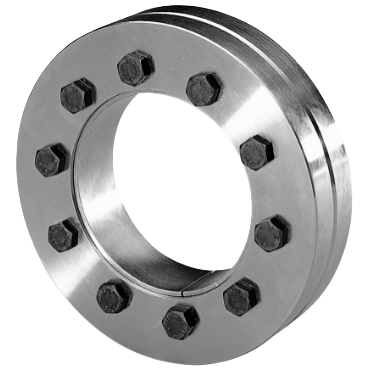

Lovejoy SLD900MM44 Keyless Locking Rigid Coupling - 44 mm Bore - 3.1500 in OD - 0.9840 in Length - 69790498013

Product Description

The Lovejoy SLD900MM44 is a keyless locking rigid coupling designed for efficient power transmission. This coupling features a bore size of forty-four millimeters and an outside diameter of three point fifteen inches. The length of the coupling measures zero point nine eight four inches. It is suitable for hollow shafts and is engineered to provide exceptional concentricity.

• Self-centering design
• Axial hub position fixed during clamping
• Recommended for hollow shafts

Product Highlights

The Lovejoy SLD900MM44 ensures reliable performance in mechanical power transmission tasks. It is optimally designed for use in applications involving hollow shafts, enhancing stability and efficiency in operations.

Product Information

Standard Information

• Brand: Lovejoy
• Country Of Origin: Italy

Technical Specifications

• Series: 900
• Material: Steel
• Weight: 1.32 lbs
• Bore Diameter: 44 mm
• Coupling Length: 0.9840 in
• Outside Diameter: 3.1500 in
• Screw Thread Size: M6
• Maximum Transmitted Torque: 719 ft-lbs
• Number Of Locking Screws: 7
• Manufacturer Catalog Number: 69790498013
