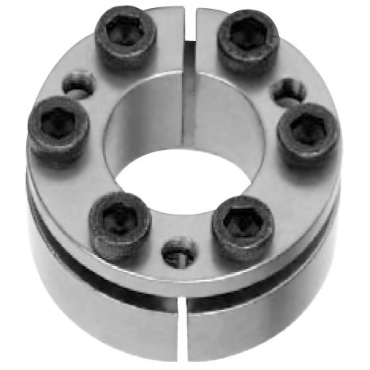

Lovejoy SLD1850MM24X50 SLD 1850 Series Shaft Locking Device

Product Description

The Lovejoy SLD1850MM24X50 is part of the SLD 1850 Series Shaft Locking Device. This device features an inner and outer ring secured by socket head cap screws. An inclined plane mechanism is used to bring the rings together when the screws are tightened, creating a mechanical fit without traditional keying methods. This design allows for high torque transmission and easy assembly.

• Self-centering style
• 24 mm inside diameter, 50 mm outside diameter
• Easy mounting and dismounting

Product Highlights

The SLD 1850 Series is known for its robust design that accommodates high torque applications while preventing backlash. This allows for precise placement, essential in various industrial settings.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: SLD1850MM24X50

Technical Specifications

• Material: Silver/Metallic
• Locking Type: Internal Locking
• I.D.: 24 mm
• O.D.: 50 mm
• Weight: 0.595 lb
• Transmitted Torque (Max): 362 lb/ft
• Screw Style: Socket Head Cap Screw
• No. of Screws: 6
• Mountable Thickness: 0.669 in
• Pressure on the Shaft: 29153 psi
• Transmitted Axial Force: 9198 lb/ft
