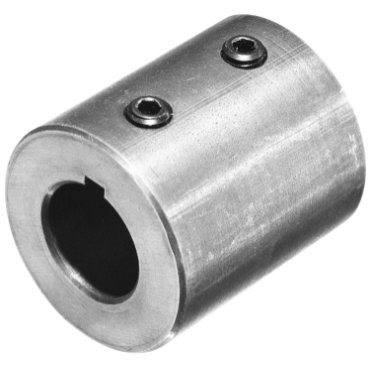

Lovejoy SC875CPLG7/8KW3/16 | Lovejoy Rigid Coupling

Product Description

The Lovejoy Rigid Coupling, MPN SC875CPLG7/8KW3/16, is designed to provide a secure connection between two precisely aligned shafts. This coupling maintains shaft alignment and supports proper bearing functionality.

• Designed for fixed union between two shafts
• Constructed from durable steel with a black oxide finish
• Features a keyway for secure attachment

Product Highlights

This rigid coupling is suitable for various applications where shaft alignment is crucial.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: SC875CPLG7/8KW3/16

Technical Specifications

• Color: Gray/Metallic
• Nominal Size: 7/8 in
• Bore Type: Finished Bore
• Overall Length: 2 in
• Insert Style: Rigid
• Outside Diameter: 1.75 in
• Material: Steel
• Finish: Black Oxide
• ID: 7/8 in
• Screw Size: 5/16-18 X 5/16 in
• Keyway Size: 3/16 x 3/32
• Coupling Size: SC875
• Coupling Type: Rigid Coupling
• Keyway: With Keyway
• OD: 1.75 in
• Length: 1 3/4 in
• Weight: 1.02 LB
• EAN or UPC: 685144143389
