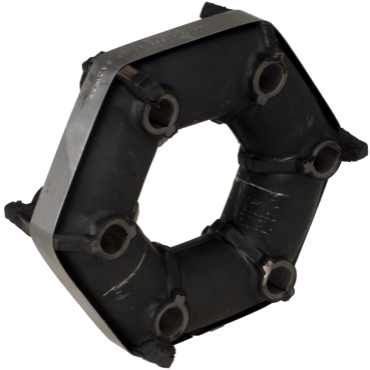

Lovejoy SAGA22DONUT W/HDWR | Saga Donuts with Hardware

Product Description

The Lovejoy SAGA22DONUT W/HDWR is a doughnut coupling designed for effective power transmission. This coupling absorbs misalignment and shock, ensuring smooth operation. Made from natural rubber, it operates efficiently in temperatures ranging from negative sixty degrees Fahrenheit to two hundred degrees Fahrenheit.

• Coupling size S22
• Rated power of 4.76 horsepower at one hundred revolutions per minute
• Suitable for various industrial applications

Product Highlights

The Lovejoy SAGA22DONUT W/HDWR coupling is constructed to absorb shock and accommodate misalignment, making it ideal for machinery that undergoes frequent dynamic changes.

Product Information

Standard Information

• Brand: Lovejoy
• Part number: SAGA22DONUT W/HDWR
• Material: Natural Rubber

Technical Specifications

• Bore diameter (max): 2 1/2 inches
• Rated power at 100 RPM: 4.76 horsepower
• Moment of inertia: 102
• Size of bolts: 5/8-11 x 3 1/4
• Insert style: Flexible
• Temperature range (max): 200 degrees Fahrenheit
• Coupling size: S22
• Bolt holes: 6
• Torque: 3000 in lb
• Recommended torque (dry): 150 ft lb
• Maximum RPM: 5000
• Outside diameter: 7.31 inches
• Overall length: 8.69 inches
• Weight: 5.16 lb
