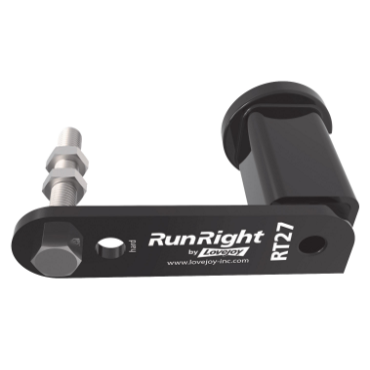

Lovejoy RTF27TENSIONER RunRight Elastomeric Tensioner

Product Description

The Lovejoy RTF27TENSIONER is designed for effective belt and chain tensioning. This elastomeric tensioner is suitable for various applications where vibration absorption is essential. The design allows for automatic adjustment to compensate for belt or chain stretch without requiring lubrication.

• Size of twenty-seven inches
• Front mount configuration
• Temperature range from minus forty degrees Fahrenheit to one hundred eighty degrees Fahrenheit

Product Highlights

This tensioner effectively absorbs shock loads, minimizes wear on drive bearings and shafts, and is easy to install.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: RTF27TENSIONER

Technical Specifications

• Material: Natural Rubber, Sintered Iron
• Coupling Size: SE-F27
• Mounting Bolt Size: M10
• Idler Bolt Size: 1/2 - 13 x 3 1/2
• Insert Style: Elastomeric
• Belt Size: D, E
• Chain Size: 50, 60, 40-3, 41-3, 50-2, 50-3, 60-2, 60-3
• Weight: 4.6 lb
• Outside Diameter: 3.07 in
• Housing Diameter: 3.07 in
• Overall Length: 4.25 in
• Housing Length: 4 1/4 in
• Arm Height/Length: 6.1 in
• Force @ 10 Degree Angle of Pretension Hard: 43.8 lbf
• Force @ 20 Degree Angle of Pretension Hard: 111.1 lbf
• Force @ 30 Degree Angle of Pretension Hard: 233.8 lbf
• Force @ 10 Degree Angle of Pretension Normal: 33.8 lbf
• Force @ 20 Degree Angle of Pretension Normal: 85.4 lbf
• Force @ 30 Degree Angle of Pretension Normal: 179.8 lbf
