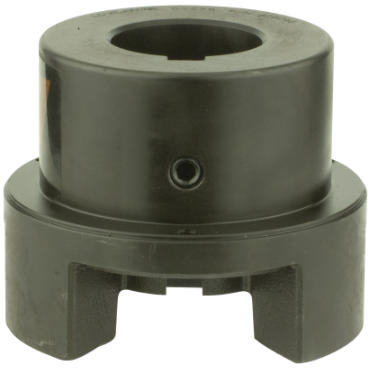

Lovejoy RRS110X3/4HUB3/16 RRS Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy RRS110X3/4HUB3/16 is a reborable jaw coupling hub designed for various applications in the pump industry. This coupling accommodates standard pump and motor shaft separations and includes features for optimal performance.

• Suitable for American and European standards
• Includes two setscrews at ninety degrees
• Made from durable sintered iron material

Product Highlights

The hub is ideal for smooth power transfer and shaft alignment.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: RRS110X3/4HUB3/16

Technical Specifications

• Color: Gray/Metallic
• Elastomeric Member: SOX (NBR) Rubber
• Outside Diameter: 3.31 inches
• Lock Type: Setscrew
• Rated Power @ 100 rpm: 1.26 hp
• Set Screw Size: 5/16-18
• Coupling Size: RRS110
• Rated HP @ 1,200 rpm: 15.12 hp
• Number of Jaws: 3
• Depth: 2.44 inches
• Bore Diameter [Min]: 5/8 inches
• Torque: 792 in lb
• Material: Sintered Iron
• RPM [Max]: 3600 rpm
• Length Through Bore: 1.68 inches
• Bore Diameter [Max]: 1 5/8 inches
• Keyway Size: 3/16 x 3/32
• Rated HP @ 3,600 rpm: 45.36 hp
• Hub Diameter: 3 5/16 inches
• Approximate Bore: 2.44 inches
• Rated HP @ 1,800 rpm: 23 hp
• Hub Type: 1
• Coupling Type: Jaw
• Weight: 2.95 lb
• EAN or UPC: 685144381606
