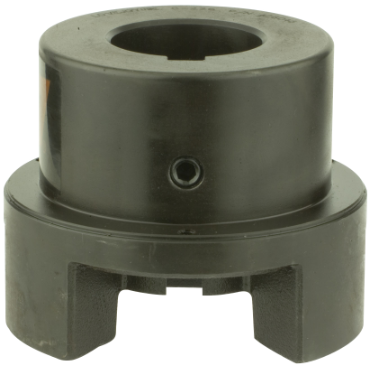

Lovejoy RRS099X3/4HUB3/16 | RRS Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy RRS099X3/4HUB3/16 is a reborable jaw coupling hub designed for the pump industry. This coupling features a three-fourths inch bore diameter and is made from sintered iron material. It is ideal for applications that require flexible and reliable connections between motor and pump shafts.

• Accommodates American and European industry standard pump/motor shaft separations
• Includes two setscrews positioned at 90 degrees
• Rated for a maximum RPM of 3600

Product Highlights

This coupling is easy to install and provides durable performance in various pumping applications.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: RRS099X3/4HUB3/16

Technical Specifications

• Coupling Type: Jaw
• Elastomeric Member: SOX (NBR) Rubber
• No. of Jaws: 3
• RPM [Max]: 3600
• Approximate Bore: 1.65 in
• Rated HP @ 1,200 rpm: 6 hp
• Rated Power @ 100 rpm: 1/2 hp
• Torque: 318 in lb
• Rated HP @ 3,600 rpm: 18 hp
• Hub Dia.: 2.53 in
• Depth: 1.65 in
• Length Through Bore: 1.06 in
• Keyway Size: 3/16 x 3/32
• Hub Type: 1
• Color: Gray/Metallic
• Lock Type: Setscrew
• Bore Dia. [Max]: 1.1870 in
• Bore Dia. [Min]: 0.4370 in
• Rated HP @ 1,800 rpm: 9 1/10 hp
• Set Screw Size: 5/16-18
• Weight: 1.12 lb
• EAN or UPC: 685144381699
