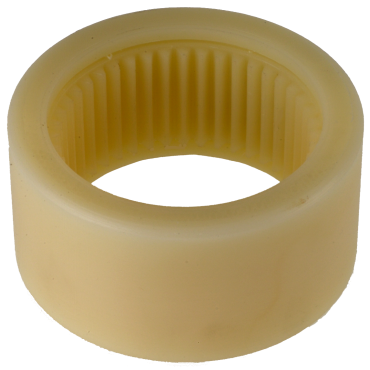

Lovejoy NYFL SLEEVE | Nyflex® Type Coupling Sleeves | 1.625 Bore Diameter

Product Description

The Lovejoy NYFL SLEEVE is designed for use in Nyflex® type coupling applications. It features a bore diameter of one point six two five inches, making it suitable for a variety of coupling tasks.

• Resilient and lightweight construction
• Abrasion and corrosion resistance
• Almost frictionless properties eliminate lubrication need

Product Highlights

This sleeve is accurately molded to mesh perfectly with the hub, providing reliable performance in mechanical applications.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: NYFLSLEEVE

Technical Specifications

• Material: Nylon
• Outside Diameter: 3.75 inches
• Bore Diameter (Max): 1 5/8 inches
• Length: 1.880 inches
• Length Through Bore: 1.63 inches
• Height: 2.380 inches
• Weight: 0.4 pounds
• Torque Rating: 1420 inch lbs
• Temperature Range [Min]: -40 °F
• Temperature Range [Max]: 150 °F
• RPM [Max]: 5000 rpm
• HP @ RPM: 2.25 hp @ 100 rpm
• Size Code: NYFL
• EAN or UPC: 697904000269
