Lovejoy NB8B5/8X5/8FB | 102145070

Product Description

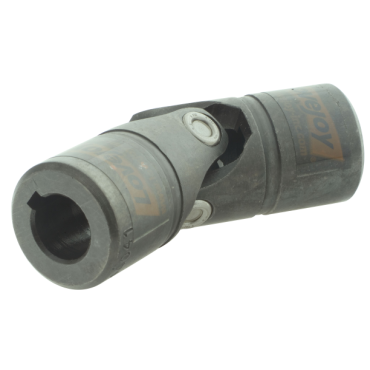

The Lovejoy NB8B5/8X5/8FB Universal Joint provides a reliable solution for connecting rotating shafts. This joint is designed for efficient torque transfer while allowing for the movement necessary for applications under load. It is ideal for high-speed operations, rated for a maximum speed of six thousand rpm.

• High-strength yoke shape allows full movement of the joint
• Accommodates high horsepower at high speeds
• Pre-lubricated and sealed needle bearings for longevity

Product Highlights

This universal joint is suitable for various mechanical applications, especially where flexibility and durability are essential.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: NB8B5/8X5/8FB

Technical Specifications

• Max RPM: 6000 rpm
• Bore Type: Finished Bore
• Set Screw: Yes
• Torque: 2500 in lb
• Length Through Bore: 1.06 in
• Material: Aisi 1144 Steel
• Insert Style: Bored
• Outside Dia.: 1.25 in
• Keyway Size: 3/16 x 3/32
• Coupling Size: NB8B
• Coupling Type: Universal Joints - NB Type
• Nominal Size: 0.62 in
• Max Operating Angle: 25 °
• Overall Length: 3.75 in
• Weight: 0.898 lb
