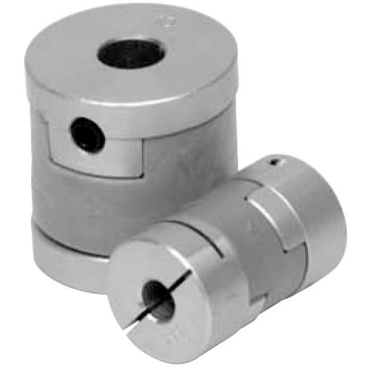

Lovejoy MOL32CX8MM HUB RSB | Oldham Clamp Style Coupling Hubs w/o Keyway

Product Description

The Lovejoy MOL32CX8MM HUB RSB is an Oldham clamp style coupling hub designed to provide efficient performance in mechanical applications. This coupling hub features a three-piece design without a keyway, making it suitable for various setups. It is ideal for applications needing a reliable connection with the ability to handle misalignment.

• Features high torsional stiffness.
• Corrosion-resistant for durability.
• Capable of handling three-degree angular misalignment.

Product Highlights

With a maximum temperature rating of one hundred seventy-six degrees Fahrenheit (eighty degrees Celsius), this hub engages positively, ensuring a strong connection under load. It also offers good torque overload and parallel misalignment capacity, enhancing its usability in dynamic applications.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: MOL32CX8MM HUB RSB

Technical Specifications

• Insert Style: Clamp Screw
• Coupling Size: MOL32C
• Overall Length: 45 mm
• Keyway Size: No Keyway
• Torque: 39.8 in lb
• Coupling Type: Oldham, Three Piece Design w/ Insert
• Color: Silver/Metallic
• Material: Aluminum
• Outside Diameter: 32 mm
• Weight: 0.005 LB
• EAN or UPC: 685144586193
