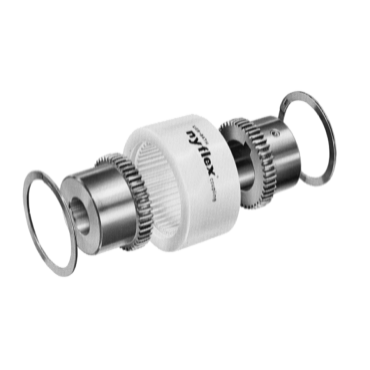

Lovejoy MITESLEEVE Mite Type Coupling Sleeves 1.125 in Bore Diameter

Product Description

The Lovejoy MITESLEEVE is designed for use in Mite Type Coupling applications. This sleeve provides a reliable connection to Coupling Systems. It is ideal for various industrial and mechanical settings.

• MITE Size Code
• Sleeve Style
• 1.125 in Bore Diameter

Product Highlights

This coupling sleeve features precise molding that ensures a snug fit with the hub, promoting efficient power transmission.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: MITESLEEVE

Technical Specifications

• Temperature Range [Min]: -40 °F
• Distance Between Shaft Ends: 0.13 in
• Torque Rating: 360 in lb
• Style: Sleeve
• Bore Dia. [Max]: 1 1/8 in
• Type: Sleeves
• Color: White
• HP @ RPM: 0.6 hp @ 100 rpm
• Temperature Range [Max]: 150 °F
• Height: 1 3/4 in
• Material: Nylon
• Length Through Bore: 1.13 in
• RPM: 1800 rpm
• RPM [Max]: 5000 rpm
• Size Code: Mite
• Length: 1.310 in
• Outside Dia.: 2.88 in
• Weight: 0.14 LB
• EAN or UPC: 697904000092
