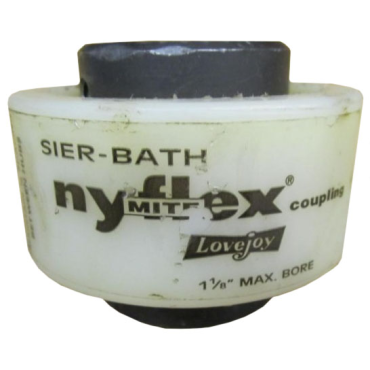

Lovejoy MITEHUBSSRSB Mite Hub SS RSB Gear Coupling Hub

Product Description

The Lovejoy MITEHUBSSRSB is a gear coupling hub designed for use in various mechanical applications. It features a rough stock bore and has a maximum bore diameter of one and one-eighth inches. This product is engineered for high performance and durability.

• Gear Coupling Hub
• Minimum backlash
• No lubrication required

Product Highlights

This gear coupling hub allows flexibility in shafts and tolerates misalignment, providing effective power transmission without excessive wear.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 103982701

Technical Specifications

• Coupling Size: MITE
• Coupling Type: Gear
• Overall Length: 2.38 in
• Outside Diameter: 1.75 in
• Spider Inside Diameter: 2.88 in
• Distance Between Shaft Ends: 0.13 in
• Length Through Bore: 1.13 in
• Angular Misalignment [Max]: 3 degrees
• Bore Type: Rough Stock Bore
• Bore Diameter [Max]: 1 1/8 in
• Keyway Size: No Keyway
• Material: Sintered Iron, Stainless Steel
• Weight: 0.7 LB
• EAN or UPC: 697904000085
