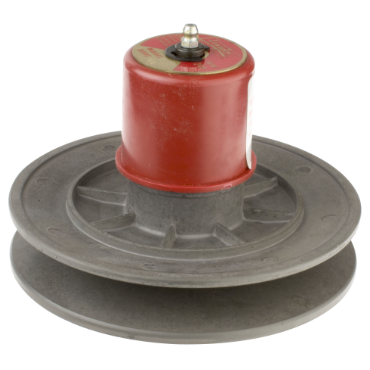

Lovejoy M007X3/4PULLEY Model M-007 Adjustable Driver Pulley

Product Description

The Lovejoy M007X3/4PULLEY is a model M-007 adjustable driver pulley designed for various applications. This pulley features a fixed center design with an outside diameter of six inches. It is suitable for use in conveyors, printing equipment, mixers, packaging machines, bottling equipment, and agricultural machinery.

• Fixed center - driver type
• Six inch outside diameter
• Designed to reduce overhung load

Product Highlights

This adjustable driver pulley provides maximum service when lubricated through a convenient grease fitting.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: M007X3/4PULLEY

Technical Specifications

• Belt Size: 1422V
• Torque Rating: 27 in lb
• Belt Match: 1
• Pitch Diameter [Min]: 1.9 in
• Outside Diameter: 6 in
• Pitch Diameter [Max]: 5.8 in
• Overall Length: 7 in
• Pitch Diameter: 1.9 in
• Material: Cast Iron
• Drive Type: Fixed Center - Driver
• Finished Bore: 3/4 in
• Total Travel: 0.44 in
• Origin: Fixed Center Spring Loaded Driver
• Weight: 7.6 lb
• EAN or UPC: 685144316721
