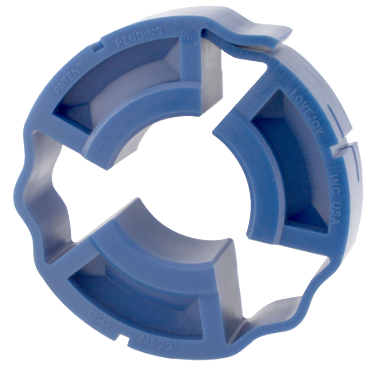

Lovejoy LS276SPIDER6PIN Jaw In-Shear Type Spider & Ring

Product Description

The Lovejoy LS276SPIDER6PIN is a Jaw In-Shear Type Spider & Ring designed for reliable performance in various applications. This coupling element is built to accommodate angular misalignments and is easy to use, requiring no tools for element replacement.

• Compatible with LS276 size coupling
• Accommodates bore sizes up to four inches
• Suitable for heavy washdown environments

Product Highlights

This spider ring features a quick-change design allowing for swift replacement without needing to move the hubs. It utilizes a standard hub design from Lovejoy, ensuring compatibility and efficiency.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: LS276SPIDER6PIN

Technical Specifications

• Overall Length: 9.430 in
• Temperature Range [Max]: 200 °F
• Coupling Size: LS276
• Outside Diameter: 6.1800 in
• Insert Style: Wrap Type
• Max RPM: 3,100 rpm
• Coupling Type: Jaw In-Shear
• Max Torque Rating: 7,460.0 in lb
• Material: Urethane Spider
• Color: Blue
• Hardness: 50D Shore
• Weight: 2.24 LB
• EAN or UPC: 685144717122
