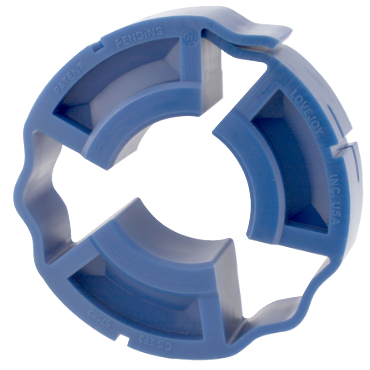

Lovejoy LS225SPIDER6PIN Jaw In-Shear Type Spider & Ring

Product Description

The Lovejoy LS225SPIDER6PIN is a Jaw In-Shear Type Spider and Ring designed for use in various coupling applications. It excels in environments that may involve high angular misalignment. This spider accommodates bore sizes up to four inches and is suitable for heavy washdown conditions.

• Industry-standard hub design
• No tools required for replacement
• Quick change design for easy spider replacement

Product Highlights

This spider provides reliable operation under harsh conditions while maintaining efficiency.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: LS225SPIDER6PIN

Technical Specifications

• Torque Rating [Max]: 4,200.0 in lb
• Temperature Range [Max]: 200 °F
• Insert Style: Wrap Type
• Coupling Type: Jaw In-Shear
• Hardness: 50D Shore
• Color: Blue, Green
• Outside Dia.: 5 in
• No. of Legs: N/A
• RPM [Max]: 3,900 rpm
• Material: Urethane Spider
• HP @ RPM: 6.66 hp @ 100 rpm
• Overall Length: 6.300 in
• Coupling Size: LS225
• Weight: 0.982 LB
• EAN or UPC: 685144717115
