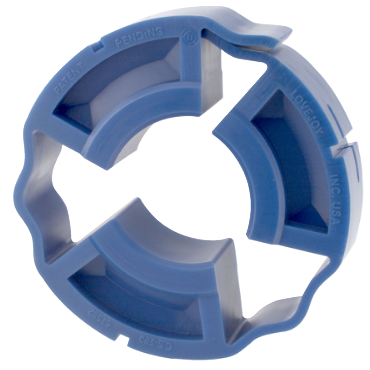

Lovejoy LS190SPIDER6PIN Jaw In-Shear Type Spider & Ring

Product Description

The Lovejoy LS190SPIDER6PIN is a jaw in-shear type spider and ring designed for 190 size couplings. This product allows for quick replacement without needing tools, improving workflow efficiency. It is suitable for applications that require high torque and can accommodate bore sizes up to four inches.

• Utilizes Lovejoy's standard hub design
• Handles 2-degree angular misalignment
• Works in highly corrosive and heavy washdown environments

Product Highlights

The LS190SPIDER6PIN is ideal for industries requiring reliable performance under demanding conditions. Its design supports efficient operation and easy maintenance.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: LS190SPIDER6PIN

Technical Specifications

• Hardness: 50D Shore
• Outside Diameter: 4.5 inches
• Insert Style: Wrap Type
• HP at RPM: 4.63 hp at 100 rpm
• Coupling Size: LS190
• Max Temperature Range: 200 °F
• Torque: 2,920.0 in lb
• Coupling Type: Jaw In-Shear
• Color: Blue, Green
• Overall Length: 5.820 inches
• Max RPM: 4,300 rpm
• Max Torque Rating: 2,920.0 in lb
• Material: Urethane Spider
• Weight: 0.61 lb
• UPC: 685144717108
