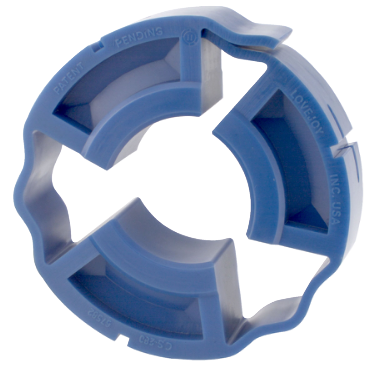

Lovejoy LS090/095SPIDER6PI Jaw In-Shear Type Spider & Ring

Product Description

The Lovejoy LS090/095SPIDER6PI is a jaw in-shear type spider and ring designed for use with LS090 and LS095 size couplings. This spider offers reliable performance in various mechanical applications.

• Compatible with bore sizes up to four inches.
• No tools required for quick element changes.
• Designed for heavy washdown environments.

Product Highlights

Easy to install and replace, this spider supports a wide range of applications requiring robust coupling solutions.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: LS090/095SPIDER6PI

Technical Specifications

• Hardness: 50D Shore
• Max RPM: 9,200 RPM
• Coupling Size: LS090, LS095
• Insert Style: Wrap Type
• Coupling Type: Jaw In-Shear
• Torque: 335.0 in lb
• Outside Diameter: 2.75 inches
• Material: Urethane Spider
• Max Torque Rating: 335.0 in lb
• Max Temperature Range: 200 °F
• HP @ RPM: 0.53 hp @ 100 rpm
• No. of Legs: N/A
• Weight: 0.11 lb
• EAN or UPC: 685144717061
