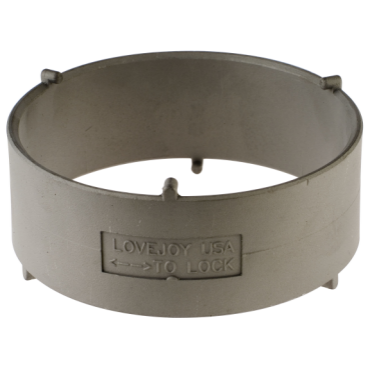

Lovejoy LS090/095RING6PIN | Jaw In-Shear Type Spider & Ring

Product Description

The Lovejoy LS090/095RING6PIN is a jaw in-shear type spider and ring designed for specific coupling sizes. This product allows for easy spider replacement without requiring tools, making maintenance efficient.

• Compatible with LS090 and LS095 coupling sizes
• Angular misalignment capability of 2 degrees
• Constructed from cast stainless steel for durability

Product Highlights

The jaw in-shear design accommodates various applications and environments, including those that are highly corrosive.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: LS090/095RING6PIN

Technical Specifications

• Hardness: N/A
• Outside Diameter: 2.75 inches
• HP @ RPM: 0.53 hp @ 100 rpm
• Coupling Type: Jaw In-Shear
• Coupling Size: LS090, LS095
• Color: Gray
• Material: Cast Stainless Steel Ring
• Torque: 335.0 in lb
• Insert Style: Wrap Type
• RPM [Max]: 9,200 rpm
• Torque Rating [Max]: 335.0 in lb
• Temperature Range [Max]: 200 °F
• Weight: 0.24 lb
• EAN or UPC: 685144716798
