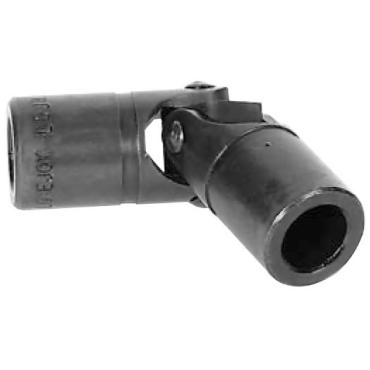

Lovejoy LOJ10B3/4STD Offset Pin Universal Joint

Product Description

The Lovejoy LOJ10B3/4STD is an offset pin universal joint designed for hand-operated, low torque drives. It features a durable steel construction and can efficiently operate at angles up to forty-five degrees. This joint is suitable for various applications requiring reliable performance.

• Economical design for low torque drives
• Max operating angle of 45 degrees
• Constructed from high-quality steel

Product Highlights

This product is ideal for mechanical systems where flexibility and stability are required.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: LOJ10B3/4STD

Technical Specifications

• Temperature Range Max: 400 °F
• Max Operating Angle: 45 °
• Outside Diameter: 1.25 in
• Spider Outside Diameter: 1.44 in
• Style: Bored
• Bore Type: Finished Bore
• Material: Steel
• Torque Rating Max: 3480 in lb
• Nominal Size: 3/4 in
• Length to Centerline: 1.69 in
• Bore Depth: 1 in
• Overall Length: 3.75 in
• RPM Max: 1750 rpm
• Weight: 0.76 LB
• EAN or UPC: 685144173157
