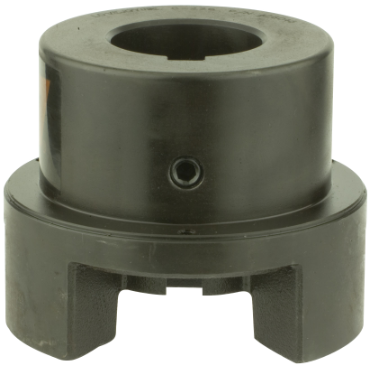

Lovejoy LC190X1 3/8HUB5/16 | LC Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy LC190X1 3/8HUB5/16 is a reborable jaw coupling hub designed for precise power transmission and reliable performance in various applications. It efficiently transmits torque and accommodates misalignment while minimizing wear and tear. This product is compatible with setups operating over 1,750 rpm.

• Drilled and tapped for collar mounting screws
• Includes one setscrew for secure fastening
• Constructed from durable sintered iron

Product Highlights

Ideal for high-speed applications, this coupling hub provides efficient operation and is engineered for durability.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: LC190X1 3/8HUB5/16

Technical Specifications

• Keyway Size: 5/16 x 5/32
• Bore Diameter (Max): 2.1200 inches
• Hub Type: 2
• Set Screw Size: 1/2-13
• RPM (Max): 5000 rpm
• Coupling Type: Jaw
• Overall Length: 4.88 inches
• Length Through Bore: 1.94 inches
• Hub Diameter: 4 inches
• Number of Jaws: 3
• Outside Diameter: 4.5 inches
• Rated HP @ 1,200 rpm: 32 2/5 hp
• Material: Sintered Iron
• Torque: 1728 in lb
• Weight: 6.75 lbs
