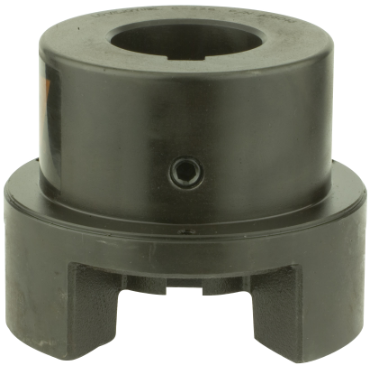

Lovejoy LC110X7/8HUB3/16 | LC Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy LC110X7/8HUB3/16 is a reborable jaw coupling hub designed for various industrial applications. This coupling hub supports speeds over 1,750 rpm, making it suitable for high-performance tasks. Its robust design includes drilled and tapped holes that accommodate collar mounting screws, ensuring proper assembly and stability. Each unit comes with one setscrew for secure installation.

• Compatible with 1,750 rpm and above applications
• Drilled for easy mounting
• Includes one setscrew

Product Highlights

This coupling hub is versatile and built for high-speed operations, allowing for efficient power transfer in mechanical systems.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: LC110X7/8HUB3/16

Technical Specifications

• Rated HP @ 1,200 rpm: 15.12 hp
• Rated HP @ 1,800 rpm: 23 hp
• Rated HP @ 3,600 rpm: 45.36 hp
• Max RPM: 5000 rpm
• Torque: 792 in lb
• Material: Sintered Iron
• Bore Diameter (Max): 1.6200 in
• Bore Diameter (Min): 5/8 in
