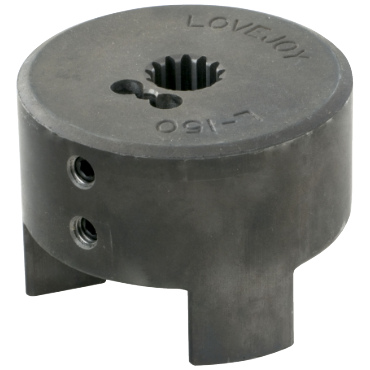

Lovejoy L225HUB13T8/16 L Type Jaw Coupling Hub

Product Description

The Lovejoy L225HUB13T8/16 is a reliable L Type Jaw Coupling Hub designed for standard shaft-to-shaft connections in industrial applications. This coupling hub is made of cast iron, providing durability for heavy-duty tasks. The Centraloc spline locking feature ensures secure operation during use.

• Standard shaft-to-shaft connection
• Durable cast iron construction
• Includes Centraloc spline locking feature

Product Highlights

This coupling hub functions well in general industrial-duty applications, offering stability and strength.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 100812974

Technical Specifications

• Spline Size: 13t 8/16 DP
• Coupling Size: L225, 225
• Spline Description: 8/16
• Length Through Bore: 2.18 inches
• Outside Diameter: 4.25 inches
• Overall Length: 5.34 inches
• Material: Cast Iron
• Hub Diameter: 4 1/4 inches
• Coupling Type: Jaw
• Lock Type: Setscrew
• Maximum RPM: 4200 rpm
• Number of Teeth: 13
• Weight: 8.02 lb
• EAN or UPC: 685144379405
