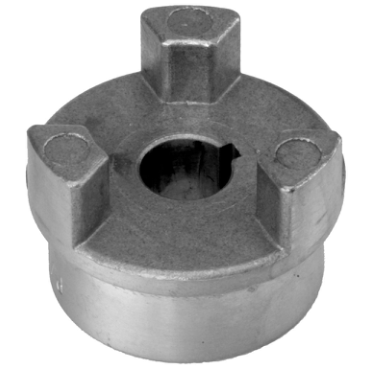

Lovejoy L190X2HUB1/2 L Type Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy L190X2HUB1/2 is a finished bore jaw coupling hub designed for standard shaft-to-shaft connections in general industrial applications. This product is ideal for use in various machinery where reliable torque transfer is necessary. It accommodates bore sizes of two inches and features a durable design.

• Standard shaft-to-shaft connection for smooth operation.
• Suitable for bore sizes up to two and an eighth inches.
• Constructed with sintered iron and other high-quality materials.

Product Highlights

Features a standard hub design with options for different elastomeric inserts.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: L190X2HUB1/2

Technical Specifications

• Coupling Size: L190
• Bore Diameter Maximum: 2 1/8 in
• Bore Diameter Minimum: 3/4 in
• Material: Sintered Iron
• Overall Length: 4.86 in
• Torque Capacity: 1728 in lb
• Maximum RPM: 5000 rpm
• Insert Style: Jaw Type
• Lock Type: Setscrew
• Depth: 2.94 in
• Outside Diameter: 4.5 in
• Hub Diameter: 4 in
• Keyway Size: 1/2 x 1/4
• Weight: 5.99 LB
• EAN or UPC: 685144123039
