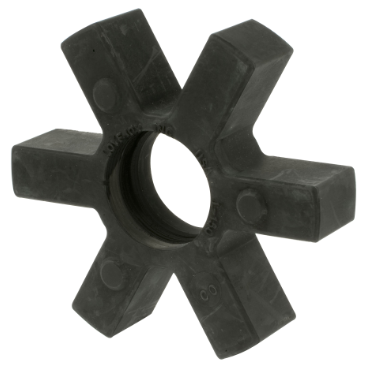

Lovejoy L110SOX OCT | L Type Coupling Spider

Product Description

The Lovejoy L110SOX OCT is an L Type Coupling Spider designed for size 110 jaw couplings. Made from nitrile butadiene rubber, it provides flexibility and resilience in various applications. This coupling spider offers shaft positioning flexibility, making it suitable for different setups.

• High torque rating with optimal performance
• Compatible with multiple coupling sizes
• Designed for high-temperature applications

Product Highlights

The L110SOX OCT excels in high-torque scenarios and provides effective operation from temperatures as low as -40 degrees Fahrenheit to as high as 212 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: L110SOX OCT

Technical Specifications

• Color: Black
• Insert Style: Open Center
• Coupling Size: L110, AL110
• Temperature Range Min: -40 °F
• Coupling Type: Jaw
• Torque Rating: 792.0 in lb
• Outside Diameter: 3.3200 in
• Torque Rating Max: 792.0 ft lb
• HP @ RPM: 23 hp @ 800 rpm
• Torque: 89.5 N-m
• No. of Legs: 6
• RPM Max: 5,000 rpm
• Material: Nitrile Butadiene Rubber
• Temperature Range Max: 212 °F
• Weight: 0.15 LB
• EAN/UPC: 685144117113
