Lovejoy L099/L100HYTOCT L Type Coupling Spider each L099/L100HYT OCT

Product Description

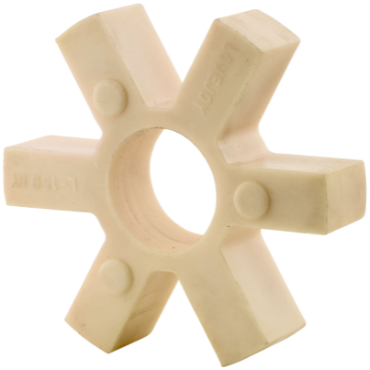

The Lovejoy L099/L100HYTOCT is a reliable L Type coupling spider designed for continuous load applications. This product is suitable for high torque and high temperature operations. It is made from Hytrel material, providing excellent resistance to oil and chemicals.

• Insert for Size 099/100 Jaw Coupling
• Open center design for shaft positioning flexibility
• High torque rating

Product Highlights

This coupling spider features a robust design that effectively handles demanding applications while providing durability and performance.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 102115834

Technical Specifications

• Torque Rating [Max]: 792.0 ft lb
• No. of Legs: 6
• HP @ RPM: 22.6 hp @ 800 rpm
• Coupling Type: Jaw
• Coupling Size: L099, L100, AL099, AL100
• RPM [Max]: 7,000 rpm
• Torque Rating: 792.0 in lb
• Outside Diameter: 2.5400 in
• Temperature Range [Min]: -60 °F
• Temperature Range [Max]: 250 °F
• Material: Hytrel
• Weight: 0.06 lb
• EAN or UPC: 685144114860
