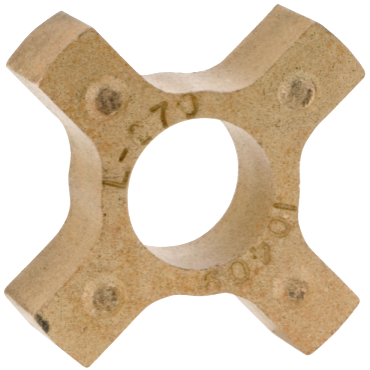

Lovejoy L099/L100BNZ SPD L Type Coupling Spider

Product Description

The Lovejoy L099/L100BNZ SPD is an L Type Coupling Spider designed for low speed applications that require high torque capabilities. It features a bronze construction that ensures durability and reliability in various conditions.

• Insert for Size 099/100 Jaw Coupling
• Rigid, porous, oil-impregnated metal insert
• Performance is unaffected by water, oil, dirt, or extreme temperatures

Product Highlights

This coupling spider is engineered for flexibility in shaft positioning and effective power transmission.

Product Information

Standard Information

• Availability: Ready to Ship
• Min Order Qty: 1

Technical Specifications

• Torque Rating: 792.0 in lb
• Temperature Range [Max]: 450 °F
• Material: Bronze
• HP @ RPM: 9.1 hp @ 800 rpm
• Torque Rating [Max]: 792.0 ft lb
• No. of Legs: 6
• Temperature Range [Min]: -40 °F
• Coupling Size: L099, L100, AL099, AL100
• RPM [Max]: 7,000 rpm
• Coupling Type: Jaw
• Outside Dia.: 2.5400 in
• Weight: 0.31 lb
• EAN or UPC: 685144114976
