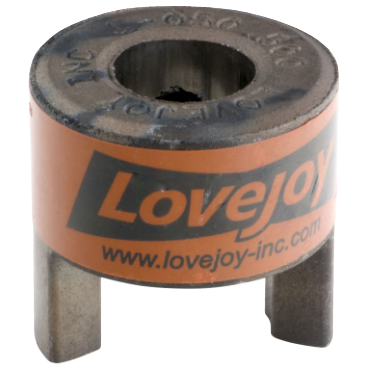

Lovejoy L090X9/16HUB RSB | L Type Reborable Jaw Coupling Hub

Product Description

The Lovejoy L090X9/16HUB RSB is a reliable L Type Reborable Jaw Coupling Hub designed for efficient power transmission. It provides a sturdy connection for various industrial-duty applications. The hub is made from sintered iron for sizes ranging from 035 to 190 and is ideal for general mechanical coupling.

• Size 090 L Type Coupling Hub
• 9/16 RSB
• Includes one setscrew

Product Highlights

This coupling hub simplifies shaft connections in industrial settings while maintaining high performance and durability.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: L090X9/16HUBRSB

Technical Specifications

• Color: Metallic
• RPM [Max]: 9000 rpm
• Material: Sintered Iron
• Length Through Bore: 0.82 in
• Coupling Type: Jaw
• Outside Dia.: 2.11 in
• Overall Length: 2.15 in
• Input Bore Range: 9/16 to 1
• Coupling Size: 090, L090
• Bore Dia. [Min]: 9/16 in
• Bore Dia. [Max]: 1 in
• Hub Dia.: 2.11 in
• Torque: 144 in lb
• Weight: 0.626 lb
• EAN or UPC: 685144249760
