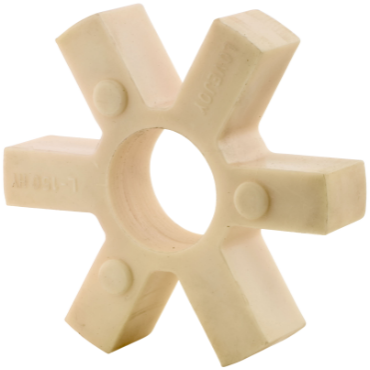

Lovejoy L090/L095HYT OCT L Type Coupling Spider

Product Description

The Lovejoy L090/L095HYT OCT is a reliable insert for size 090 and 095 jaw coupling applications. This component is designed for continuous load situations and operates effectively under high torque and temperature conditions.

• Fits size 090/095 jaw couplings
• Made from durable Hytrel material
• Open center design for improved flexibility

Product Highlights

This coupling spider offers excellent resistance to oil and chemicals, making it suitable for various industrial environments.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: L090/L095HYT OCT

Technical Specifications

• Coupling Size: L090, L095, AL090, AL095
• Material: Hytrel
• HP @ RPM: 11.5 hp @ 800 rpm
• Torque Rating: 401.0 in lb
• Outside Diameter: 2.1100 in
• Coupling Type: Jaw
• Insert Style: Open Center
• Torque Rating [Max]: 401.0 ft lb
• Temperature Range [Min]: -60 °F
• RPM [Max]: 3,600 rpm
• Temperature Range [Max]: 250 °F
• No. of Legs: 6
• Weight: 0.04 LB
• EAN or UPC: 685144253101
