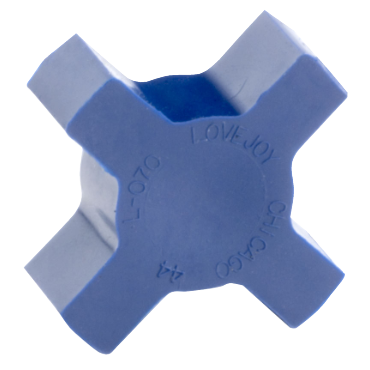

Lovejoy L070URE SOX L Type Coupling Spider

Product Description

The Lovejoy L070URE SOX is a reliable L Type coupling spider designed for size 070 jaw couplings. This insert is crafted from urethane, suitable for heavy-duty applications. It offers good chemical resistance and enhanced torque capability compared to NBR materials.

• Good resistance to oil and chemicals
• Greater torque capability than NBR
• Durable urethane material

Product Highlights

This coupling spider supports effective power transmission in various machinery systems.

Product Information

Standard Information

• Brand: Lovejoy
• Part #: 102117988

Technical Specifications

• Color: Blue
• Material: Urethane Spider
• HP @ RPM: 1.23 hp @ 800 rpm
• Insert Style: Solid
• Temperature Range [Min]: -30 °F
• Temperature Range [Max]: 160 °F
• Outside Diameter: 1.3600 inches
• Coupling Type: Jaw
• Torque Rating: 65.0 in lb
• Torque: 7.3 N-m
• Number of Legs: 6
• Coupling Size: L070
• Max RPM: 14,000 rpm
• Max Torque Rating: 65.0 ft lb
• Weight: 0.02 LB
• EAN or UPC: 685144103956
