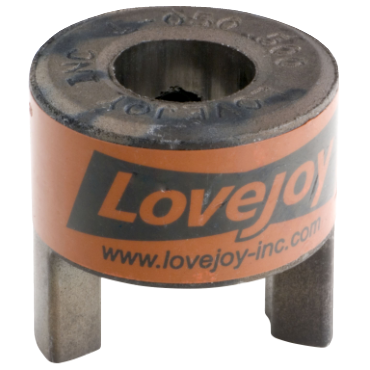

Lovejoy L050X10MM HUB RSB | L Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy L050X10MM HUB RSB offers a standard connection for shafts in various industrial settings. This reborable jaw coupling hub is suitable for applications requiring durable performance. Lovejoy provides a wide range of jaw coupling components, giving users flexibility in size and style.

• Standard shaft-to-shaft connection
• Includes one setscrew
• Suitable for general industrial-duty applications

Product Highlights

This coupling is effective for connecting shafts while allowing some misalignment.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: L050X10MMHUBRSB

Technical Specifications

• Bore Diameter (Min): 6.0000 mm
• Bore Diameter (Max): 16.0000 mm
• Set Screw Size: 1/4-20
• Rated Power @ 100 rpm: 1/25 hp
• Rated HP @ 1,200 rpm: 1/2 hp
• Rated HP @ 1,800 rpm: 3/4 hp
• Rated HP @ 3,600 rpm: 1.51 hp
• Torque: 26.3 in lb
• Depth: 1.1 in
• Overall Length: 43.43 mm
• Hub Diameter: 1.08 in
• Material: Sintered Iron
• Input Bore Range: 10 mm to 16 mm
• No. of Jaws: 2
• Maximum RPM: 18000 rpm
• Weight: 0.122 lb
• EAN/UPC: 685144102164
