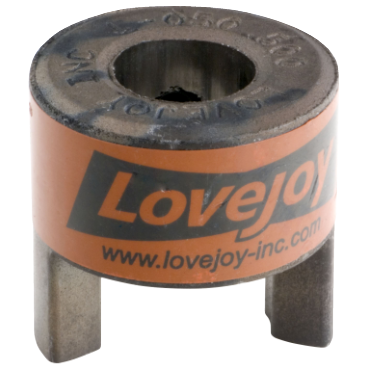

Lovejoy L050S3/8HUB RSB.32 | L Series Reborable Jaw Coupling Hub

Product Description

This is the Lovejoy L050S3/8HUB RSB.32, a part of the L Series Reborable Jaw Coupling Hub. This coupling provides a standard shaft-to-shaft connection suitable for various industrial applications. It is designed for durability and long service life, fitting into a variety of mechanical assemblies.

• Standard shaft-to-shaft connection for general industrial use
• Made of sintered iron for strength and longevity
• Includes one setscrew for secure fastening

Product Highlights

This coupling is ideal for applications that require a reliable and efficient connection between shafts.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: L050S3/8HUB RSB.32

Technical Specifications

• Max RPM: 18000 rpm
• Rated HP at 1,200 rpm: 1/2 hp
• Length Through Bore: 0.32 in
• Depth: 0.8 in
• Coupling Type: Jaw
• Hub Diameter: 1.08 in
• Keyway Size: No Keyway
• Outside Diameter: 1.08 in
• Material: Sintered Iron
• Torque: 26.3 in lb
• Elastomeric Member: SOX (NBR) Rubber
• Number of Jaws: 2
• Max Bore Diameter: 5/8 in
• Hub Type: 1
• Rated Power at 100 rpm: 1/25 hp
• Coupling Size: L050
• Weight: 0.071 lb
• UPC: 685144103376
