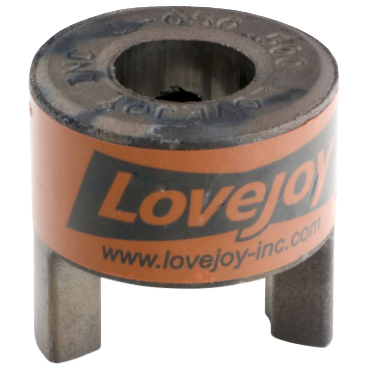

Lovejoy L050-HUB-8MMH7-NKW L Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy L050-HUB-8MMH7-NKW is a L Series Reborable Jaw Coupling Hub designed for standard shaft-to-shaft connections in various industrial applications. This coupling is constructed from sintered iron and accommodates a bore diameter ranging from eight millimeters to sixteen millimeters.

• Standard shaft-to-shaft connection for industrial applications
• Constructed from sintered iron
• Includes one setscrew

Product Highlights

This coupling is ideal for connecting equipment with various shaft sizes, allowing for flexibility and reliability in mechanical setups.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: L050-HUB-8MMH7-NKW

Technical Specifications

• Material: Sintered Iron
• Overall Length: 43.43 mm
• Torque: 26.3 in lb
• Approximate Bore: 27.94 mm
• Rated HP @ 3,600 rpm: 1.51 hp
• Outside Diameter: 27.43 mm
• Bore Diameter [Max]: 16.0000 mm
• RPM [Max]: 18000 rpm
• Rated HP @ 1,800 rpm: 3/4 hp
• Hub Type: 1
• Hub Diameter: 1.08 in
• Set Screw Size: 1/4-20
• No. of Jaws: 2
• Weight: 0.128 lb
