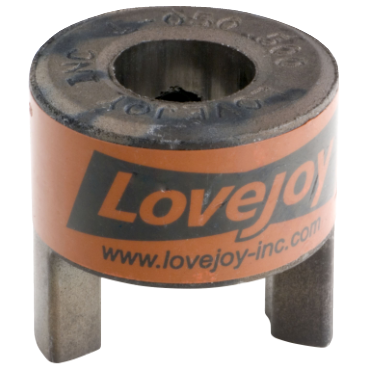

Lovejoy L035X6MM HUB RSB | L Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy L035X6MM HUB RSB is part of the L Series Reborable Jaw Coupling Hub. This coupling allows for a standard shaft-to-shaft connection, making it suitable for various industrial applications. It is engineered for durability and functionality, providing reliability in performance.

• Standard shaft-to-shaft connection for industrial applications
• Two-jaw design for effective torque transmission
• Includes one setscrew for secure fastening

Product Highlights

Ideal for general industrial use, the L035 coupling provides a secure connection and accommodates a range of bore sizes.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 101085963

Technical Specifications

• No. of Jaws: 2
• Bore Diameter (Min): 3 mm
• Length Through Bore: 6.86 mm
• Lock Type: Setscrew
• Torque: 3.5 in lb
• Hub Type: 1
• Bore Diameter (Max): 10 mm
• Input Bore Range: 4 mm to 9 mm
• Approximate Bore: 13.97 mm
• Outside Diameter: 16 mm
• Depth: 0.55 inches
• Keyway Size: No Keyway
• Overall Length: 20.57 mm
• Coupling Type: Jaw
• Max RPM: 31000
• Set Screw Size: #6-32
• Material: Sintered Iron
• Rated HP @ 1,200 RPM: 0.07 hp
• Rated HP @ 1,800 RPM: 0.1 hp
• Rated HP @ 3,600 RPM: 0.22 hp
• Rated Power @ 100 RPM: 0.01 hp
• Hub Diameter: 5/8 inches
• Weight: 0.013 lbs
• EAN/UPC: 685144458728
