Lovejoy L-190X2STD1/2X1/4KWHUB Jaw Coupling Hub 2.000 in Bore

Product Description

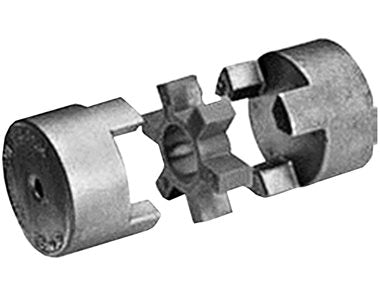

The Lovejoy L-190X2STD1/2X1/4KWHUB is a jaw coupling hub designed for a standard shaft-to-shaft connection. This product features a two-inch bore and is made of durable iron. The coupling allows for angular and parallel shaft misalignment, making it suitable for general industrial-duty applications. Additionally, this mechanism ensures no metal-to-metal contact, enhancing the durability of the setup.

• Standard L-type coupling hub materials: sintered iron or cast iron
• Fail-safe design: continues operation if elastomeric spider fails
• Resistant to oil, dirt, sand, moisture, and grease

Product Highlights

The L-190X2STD1/2X1/4KWHUB is ideal for power transmission tasks where reliability is crucial.

Product Information

Standard Information

• Brand: Lovejoy
• Country Of Origin: United States

Technical Specifications

• Height: 2.9 inches
• Bore Diameter: 2.0000 inches
• Hub Material: Iron
• Hub End Diameter: 4 inches
• Outside Diameter: 4.5000 inches
• Screw Clamp Type: Set Screw
• Length Through Bore: 1.9400 inches
• Coupling Overall Length: 4.8600 inches
• Max RPM: 5000 rpm
