Lovejoy L-110X1STD1/4X1/8KWHUB Jaw Coupling Hub

Product Description

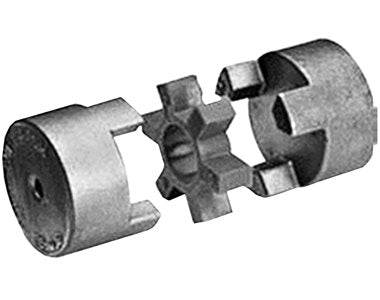

The Lovejoy L-110X1STD1/4X1/8KWHUB is a jaw coupling hub designed for shaft-to-shaft connection in industrial applications. This coupling hub features a one-inch bore and includes a keyway for secure attachment. It is constructed from durable iron, ensuring reliability in demanding environments.

• Suitable for angular and parallel shaft misalignment
• Fail-safe design continues to function if elastomeric spider fails
• Resistant to oil, dirt, sand, moisture, and grease

Product Highlights

This coupling hub is ideal for general industrial-duty applications and provides a robust solution for power transmission.

Product Information

Standard Information

• Brand: Lovejoy
• Country Of Origin: United States
• Minimum Order Quantity: 1

Technical Specifications

• Hub Material: Iron
• Bore Diameter: 1.0000 inches
• Hub End Diameter: 3.32 inches
• Outside Diameter: 3.3200 inches
• Length Through Bore: 1.6800 inches
• Coupling Overall Length: 4.2200 inches
• Maximum RPM: 5000 rpm
• Screw Clamp Type: Set Screw
