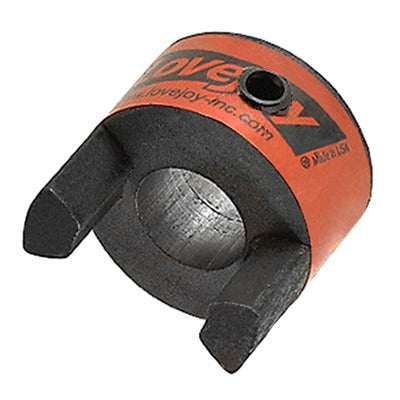

Lovejoy L-050X3/8HUBN/KW Jaw Coupling Hub - Cplg Size: L050, Straight Jaw, 0.375 in Bore, Finished w/ No Keyway

Product Description

The Lovejoy L-050X3/8HUBN/KW is a jaw coupling hub designed for standard shaft-to-shaft connection in industrial applications. This model is suitable for use in environments where angular and parallel shaft misalignment occurs. It is built with versatile materials, which include iron, ensuring durability and reliability.

• Standard L-Type coupling material provides extensive performance.
• Fail-safe design maintains function even if elastomeric components fail.
• Resistant to common contaminants like oil, dirt, and moisture.

Product Highlights

This hub is ideal for general industrial-duty applications, accommodating a range of conditions common in mechanical power transmission.

Product Information

Standard Information

• Brand: Lovejoy
• Country Of Origin: United States

Technical Specifications

• MPN: L-050X3/8HUBN/KW
• Bore Diameter: 0.3750 in
• Hub Material: Iron
• Outside Diameter: 1.0800 in
• Coupling Overall Length: 1.7100 in
• Length Through Bore: 0.6200 in
• Max Rpm: 18000 rpm
• Screw Clamp Type: Set Screw
