LOVEJOY INC 68514436384 3JE S-FLEX SOLID SLEEVE 68514436384

Product Description

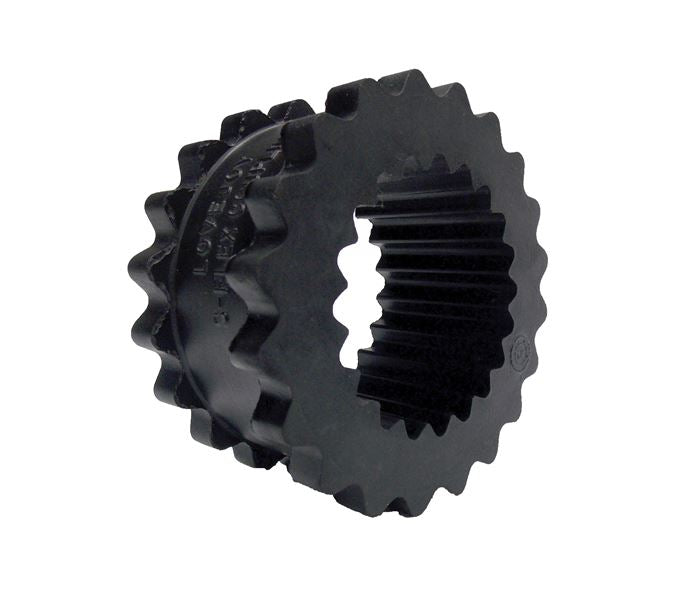

LOVEJOY INC offers the 68514436384, a S-Flex solid sleeve designed for efficient power transmission. This sleeve fits a three-inch coupling and has an overall length of one inch. With a maximum speed of nine thousand two hundred revolutions per minute, it is suitable for various applications including motors, pumps, and conveyors.

• Pre-molded teeth engage with coupling flanges
• No clamps or screws needed for installation
• Highly elastic materials reduce shock loading and vibration

Product Highlights

The 68514436384 solid sleeve streamlines installations and improves reliability by minimizing misalignment issues.

Product Information

Standard Information

• Manufacturer: LOVEJOY INC
• SKU: LOV 3JE SLEEVE

Technical Specifications

• Coupling Size: 3 in
• Length: 1 in
• Material: EPDM
• Maximum Speed: 9200 rpm
• Outside Diameter: 1-7/8 in
• Suitable For Use With: S-Flex Coupling
• Temperature Rating: -30 to 375 deg F
• Torque Rating: 60 in-lb
• Type: 1-Piece Solid
