LOVEJOY INC 68514436064 5J-FLNG-1-1/8-1/4X1/8KW; Power Transmission

Product Description

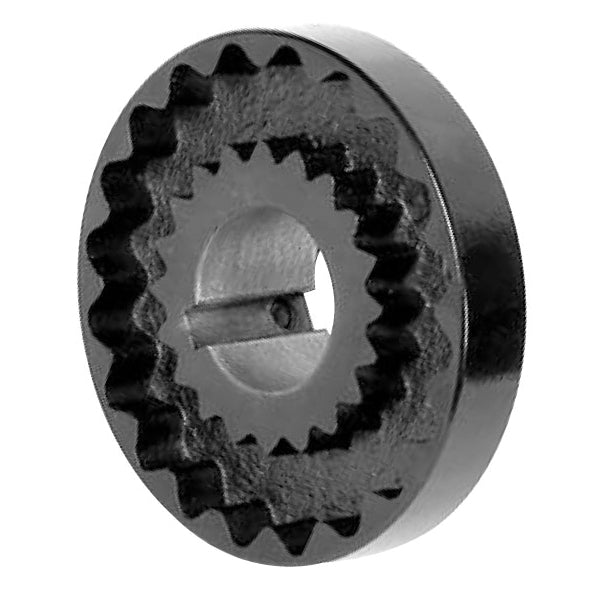

LOVEJOY INC offers the 68514436064 coupling flange, known as the 5J-FLNG-1-1/8-1/4X1/8KW;. This coupling flange features a Type J finished bore design, enabling effective power transmission. The flange has a bore of one and one-eighth inches and a hub diameter of one point eighty-eight inches, ensuring compatibility with various applications.

• Manufactured from high-strength cast iron.
• Designed for maximum speed of seven thousand six hundred RPM.
• Includes a one-quarter by one-eighth inch keyway for secure attachment.

Product Highlights

This coupling is suitable for industries requiring durable and reliable connectivity between components.

Product Information

Standard Information

• Manufacturer: LOVEJOY INC
• Type: Type J Finished Bore

Technical Specifications

• Bore Diameter: 1-1/8 in
• Coupling Size: 5J
• Hub Diameter: 1.88 in
• Hub Length: 0.47 in
• Keyway Size: 1/4 x 1/8 in
• Length Through Bore: 1.06 in
• Material: Cast Iron
• Maximum Speed: 7600 rpm
• Screw Size: 1/4-20
