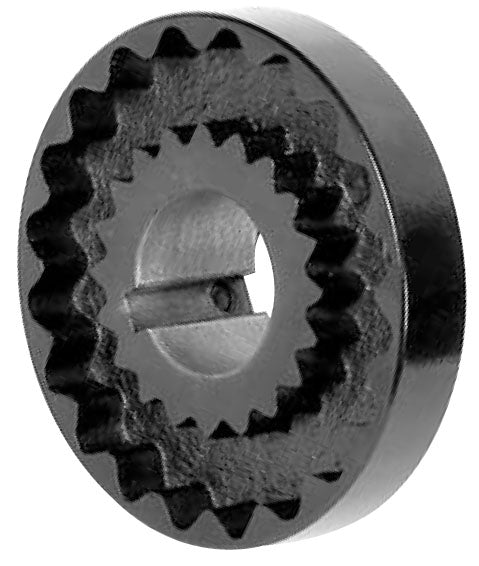

LOVEJOY INC 68514436051 4J-FLNG-1/2 1/2 in 1/8 x 1/16 in

Product Description

The LOVEJOY INC 68514436051 is a 4J-FLNG-1/2 coupling flange. It features a finished bore design suitable for various applications. This coupling flange includes a bore diameter of one half inch and is crafted from die cast zinc, known for its strength. It is ideal for use in power transmission systems.

• Constructed from high-strength die cast zinc.
• Compatible with EPDM or neoprene sleeves.
• Includes a keyway and two setscrews for secure fitting.

Product Highlights

This 4J coupling is designed to provide reliable performance in various industrial applications.

Product Information

Standard Information

• Manufacturer: LOVEJOY INC
• Type: Type J Finished Bore

Technical Specifications

• Bore Diameter: 1/2 in
• Coupling Size: 4J
• Hub Diameter: 1.63 in
• Hub Length: 0.44 in
• Keyway Size: 1/8 x 1/16 in
• Length Through Bore: 0.88 in
• Material: Die Cast Zinc
• Maximum Speed: 7600 rpm
• Screw Size: 1/4-20
