LOVEJOY INC 68514416595 D10B-UJ-3/4X3/4-NKW NSS BE

Product Description

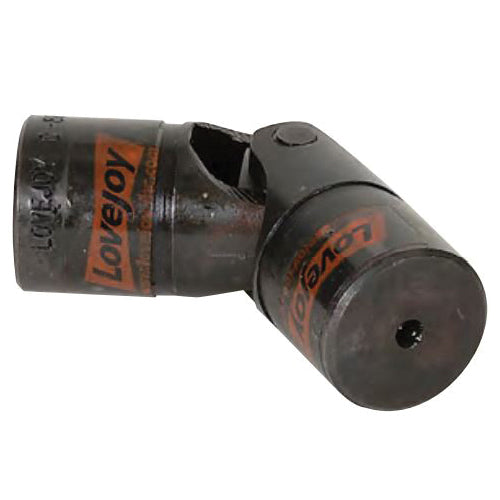

LOVEJOY INC provides the 68514416595 Universal Joint, known as the D10B-UJ-3/4X3/4-NKW NSS BE. This product features a D type pin and block design. It has a bore size of 0.75 inches diameter by 1.08 inches deep. The joint diameter is 1.5 inches. This joint can withstand a static torque of 7920 inch-pounds and operates at a maximum speed of 1750 revolutions per minute. It measures 4.25 inches in overall length and has a pin height of 2.12 inches. The maximum misalignment angle supported is 25 degrees.

• Industry standard design
• Does not include keyway and setscrew
• Durable steel construction

Product Highlights

This universal joint is suitable for various applications in power transmission where flexibility and strength are required.

Product Information

Standard Information

• Manufacturer: LOVEJOY INC
• UPC: 685144165954

Technical Specifications

• Bore Size: 0.75 inches diameter x 1.08 inches depth
• Joint Diameter: 1.5 inches
• Overall Length: 4.25 inches
• Pin Height: 2.12 inches
• Maximum Misalignment Angle: 25 degrees
• Maximum Speed: 1750 rpm
• Torque Rating: 7920 inch-pounds static
• Material: Steel
