LOVEJOY INC 68514416479 D8B-UJ-5/8X5/8-NKW NSS BE

Product Description

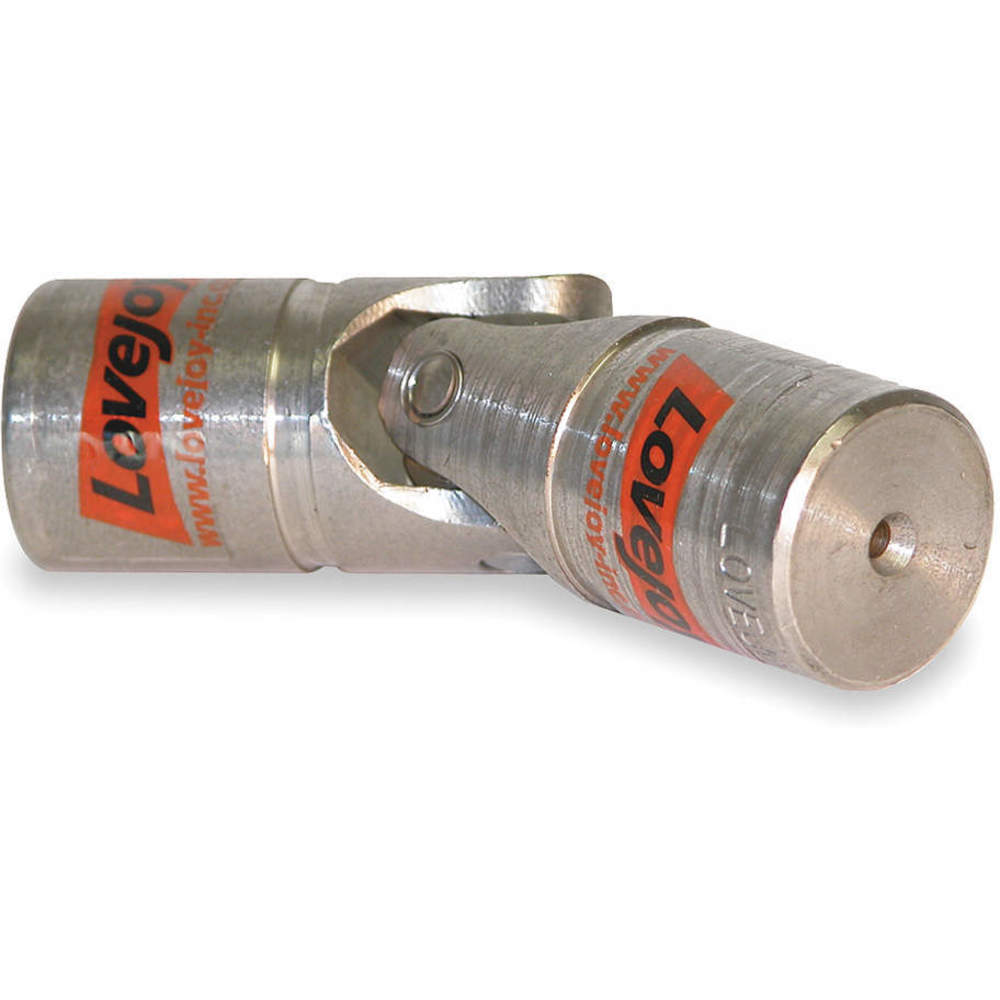

The LOVEJOY INC 68514416479 D8B-UJ-5/8X5/8-NKW NSS BE is a universal joint designed for power transmission applications. It supports a variety of settings and machinery, making it ideal for professionals in manufacturing, automotive, and machinery sectors.

• Industry standard construction
• Maximum static torque of five thousand two hundred twenty inch-pounds
• Maximum speed rating of seventeen hundred fifty revolutions per minute

Product Highlights

This universal joint features a type D pin and block design. It allows for a maximum misalignment angle of twenty-five degrees.

Product Information

Standard Information

• Manufacturer: LOVEJOY INC
• Model: D8B-UJ-5/8X5/8-NKW NSS BE

Technical Specifications

• Bore Size: 0.625 inches diameter x 1.06 inches depth
• Joint Diameter: 1-1/4 inches
• Overall Length: 3-3/4 inches
• Pin Height: 1.88 inches
• Material: Steel
• Finish: Metallic
• Maximum Speed: 1750 rpm
• Maximum Misalignment Angle: 25 degrees
• Torque Rating: 5220 inch-pounds static
• Type: Type D Pin and Block
