LOVEJOY INC 68514416019 D12-UJ-SOLIDXSOLID; Power Transmission

Product Description

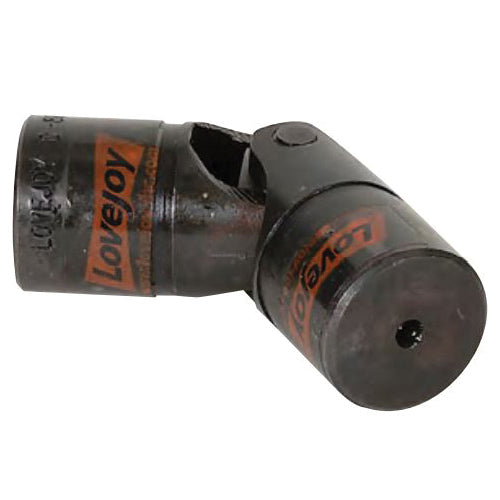

LOVEJOY INC presents the 68514416019 Universal Joint, D12 model. This joint is designed with a solid bore pin and block configuration. It features a bore size of one and a half inches in diameter with two inches for the joint diameter. This product has a static torque rating of fifteen thousand six hundred inch-pounds and can handle up to seventeen hundred fifty revolutions per minute. With an overall length of five point forty-four inches and a pin height of two point seventy-two inches, it allows for a maximum misalignment angle of twenty-five degrees.

• Industry standard design
• Without keyway and setscrew
• Manufactured from steel material

Product Highlights

This joint is built for reliability and performance in power transmission applications, making it an essential component for various industrial settings.

Product Information

Standard Information

• Brand: LOVEJOY INC
• Product Type: Universal Joint

Technical Specifications

• Bore Size: 1-1/2 in Dia x 1-1/2 in D
• Material: Steel
• Joint Diameter: 2 in
• Maximum Misalignment Angle: 25 deg
• Maximum Speed: 1750 rpm
• Overall Length: 5.44 in
• Pin Height: 2.72 in
• Torque Rating: 15600 in-lb Static
• Size: D12
• Type: Type D Solid Bore Pin and Block
