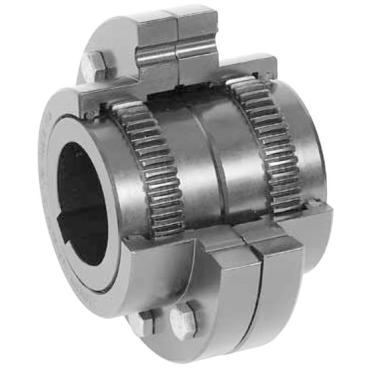

Lovejoy FA3.5HUB RSB | FA Series Gear Coupling Hub

Product Description

The Lovejoy FA3.5HUBRSB is a gear coupling hub designed for robustness and efficiency in industrial applications. This component is known for its capability to handle misalignment and is suitable for various coupling needs.

• 3.5 Coupling Size
• Rough Stock Bore
• Exposed Bolt Design

Product Highlights

This coupling hub features a smooth, one-piece alloy steel sleeve and is engineered for high performance under demanding conditions.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: FA3.5HUBRSB

Technical Specifications

• Bore Diameter (Min): 1.81 inches
• Length Through Bore: 4.19 inches
• RPM (Max): 3500 rpm
• Overall Length: 8.63 inches
• Torque: 177000 in lb
• Distance Between Spider and Hub Face: 0.25 inches
• Parallel Misalignment (Max): 0.13 inches
• Coupling Type: Gear
• Bore Diameter (Max): 4 5/8 inches
• Flange Type: Exposed Bolt
• HP @ RPM: 281 hp @ 100 rpm
• Material: Alloy Steel
• Input Bore Range: 1 13/16 to 4 5/8 inches
• Outside Diameter: 6.5 inches
• Coupling Size: 3.5, 3 1/2
• Bore Type: Rough Stock Bore
• Speed (RPM): 3500
• Insert Style: Unbored
• Weight: 40.56 lb
• EAN or UPC: 697904038668
