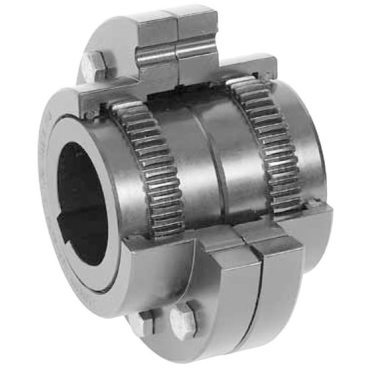

Lovejoy FA1.5E SLEEVE W/SE | FA Series Flex Gear Coupling Sleeve

Product Description

The Lovejoy FA1.5E SLEEVE W/SE is part of the FA Series Flex Gear Coupling line. This coupling sleeve compensates for angular, parallel, and axial misalignment, providing stability in various applications. The design features a standard twenty-degree pressure angle and a piloted gear fit, allowing for higher speeds and less vibration.

• Made from durable 4140 alloy steel
• Equipped with fully molded seals for enhanced protection
• Shrouded bolts standard on sizes up to five and one-half inches

Product Highlights

This coupling sleeve is ideal for both driven and driver applications, ensuring reliable operation in demanding conditions.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: FA1.5E SLEEVE W/SE

Technical Specifications

• Coupling Size: FA1.5
• Material: Alloy Steel
• Type: Sleeves
• Flange Type: Exposed Bolt
• Bolt Holes: 8
• Speed (RPM): 5500
• Torque: 22700 in lb
• Bore Diameter (Max): 2.2050 in
• Length Through Bore: 1.94 in
• Flange Diameter: 6 in
• Bolt Circle Diameter: 4.812 in
• Weight: 4.97 lb
