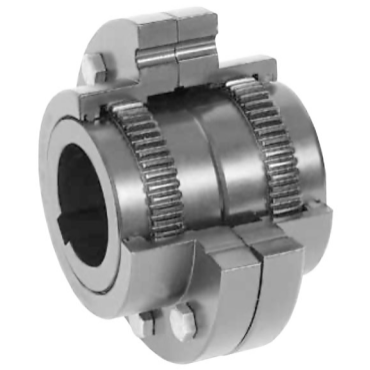

Lovejoy F6ERHUBRSB F Series Rigid Gear Coupling Hub

Product Description

The Lovejoy F6ERHUBRSB is a F Series Rigid Gear Coupling Hub designed for connecting two rigidly mounted shafts without misalignment capability. This coupling compensates for angular, parallel, and axial misalignment, ensuring robust performance in various applications.

• Compensates for angular, parallel, and axial misalignment
• Hub teeth are fully crowned for larger contact area and reduced stress
• Patented Vari-Crown® gear teeth for enhanced longevity

Product Highlights

This coupling hub is suitable for high-speed applications, helping to minimize vibration and enhance operational efficiency.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: F6ERHUBRSB

Technical Specifications

• Coupling Type: Gear
• Flange Diameter: 18 in
• Coupling Size: 6
• Length Through Bore: 7.41 in
• RPM [Max]: 2100 rpm
• Hub Type: Rigid
• HP @ RPM: 1190 hp @ 100 rpm
• Material: AISI 1045
• Bore Type: Rough Stock Bore
• Weight: 308.0 LB
• Torque Rating: 749700 in lb
• Bore Dia. [Min]: 5 1/2 in
• Bore Dia. [Max]: 10 1/2 in
• Keyway Size: No Keyway
• Flange Type: Exposed Bolt
• Outside Dia.: 14 in
