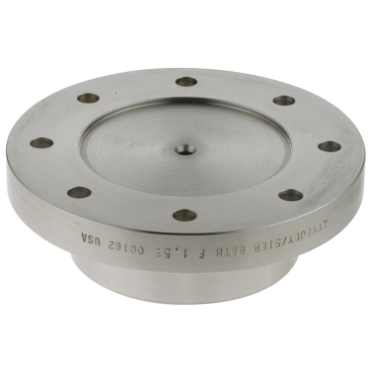

Lovejoy F5HUBRSB F Series Gear Coupling Hub 690 hp @ 100 rpm

Product Description

Lovejoy F5HUBRSB is a F Series gear coupling hub designed for durability and performance. This hub supports a bore range of three to six and a half inches. Suitable for heavy-duty applications, it features a smooth, one-piece alloy steel sleeve that can accommodate angular, parallel, and axial misalignment.

• Supports bore sizes from three to six and a half inches
• Patented Vari-Crown gear teeth for extended service life
• Constructed from 1045 carbon steel for enhanced strength

Product Highlights

This gear coupling hub enhances the efficiency of mechanical power transmission by minimizing vibration and accommodating misalignment. Its robust construction makes it ideal for industrial applications requiring reliable torque transmission.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: F5HUBRSB

Technical Specifications

• Insert Style: Unbored
• Input Bore Range: 3 to 6 1/2 inches
• HP @ RPM: 690 hp @ 100 rpm
• Material: 1045 Carbon Steel
• Torque Rating [Max]: 434700 in lb
• Hub Diameter: 9 1/2 inches
• Coupling Type: Gear Coupling Hubs
• Bore Type: Rough Stock Bore
• Length Through Bore: 6.03 inches
• Bore Diameter [Min]: 3 inches
• RPM [Max]: 2500 rpm
• Bore Diameter [Max]: 6 1/2 inches
• Outside Diameter: 9.5 inches
• Coupling Size: F5
• Weight: 117.0 lb
• EAN or UPC: 697904002270
