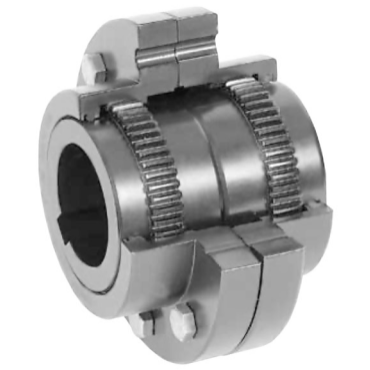

Lovejoy F5ESLEEVE Sier-Bath Coupling Sleeve

Product Description

The Lovejoy F5ESLEEVE is a Sier-Bath Coupling Sleeve designed for durable performance in various applications. It features a smooth, one-piece alloy steel design available with either exposed or shrouded bolt options. This product is ideal for use in both driver and driven applications.

• Exposed bolt flange design
• Heat-treated bolts for enhanced strength
• O-ring seals to prevent leakage

Product Highlights

The F5ESLEEVE is engineered to handle high torque and speed demands, offering a reliable coupling solution for various mechanical systems.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 102069410

Technical Specifications

• Seal Type: O-Ring
• Flange Diameter: 15.31 inches
• Torque Rating: 434700 in lb
• Size of Bolts: 7/8 - 14
• Bolt Circle Diameter: 13.5 inches
• Length Through Bore: 6.03 inches
• Style: Exposed Bolt Sleeve
• Maximum RPM: 2500 rpm
• Maximum Bore Diameter: 7.0870 inches
• Bolt Holes: 8
• Length: 6.030 inches
• Application: Driver and Driven
• Color: Metallic
• Material: 1045 Steel
• Weight: 64.0 LB
• EAN or UPC: 697904002287
